Step Motor / EtherCAT Driver

Precision Motor and EtherCAT Driver Line-up

  • Closed-Loop Stepping System
  • No Gain Tuning, No Hunting
  • Improved Torque
  • Fast Response Time
  • High Resolution
  • Detachable Cables
  • Multi-Channel Application
  • Applying Hollow Shaft Motors

Main Features


1
Closed-Loop Stepping System
Anti-slip and position correction Equipped with a 20,000 PPR encoder
for precise speed and position control during motion, with feedback
ensuring accurate tracking, slip prevention, and position correction.
2
No Gain Tuning, No Hunting
No Gain Tuning Leverages stepper motor characteristics
for fast, tuning-free operation, ensuring easy use.
No Hunting Lower vibration and noise than conventional
stepper motors, with no residual vibration at standstill.
3
Improved Torque
HySTEP provides high torque even at high RPM,
reducing acceleration time and allowing continuous
operation with higher torque compared to typical
servo motors in low speed ranges.
4
Fast Response Time
HySTEP leverages high inertia for fast positioning,
supporting high-speed intermittent operation,
bidirectional switching, and microstepping.
5
High Resolution
Depending on the application, it can be finely
segmented into various position resolution units.
(500 to 20,000 pulses per revolution).
6
Detachable Cables
Detachable cables with flexible direction options
support various configurations, while simple
installation and maintenance ensure easy servicing.
7

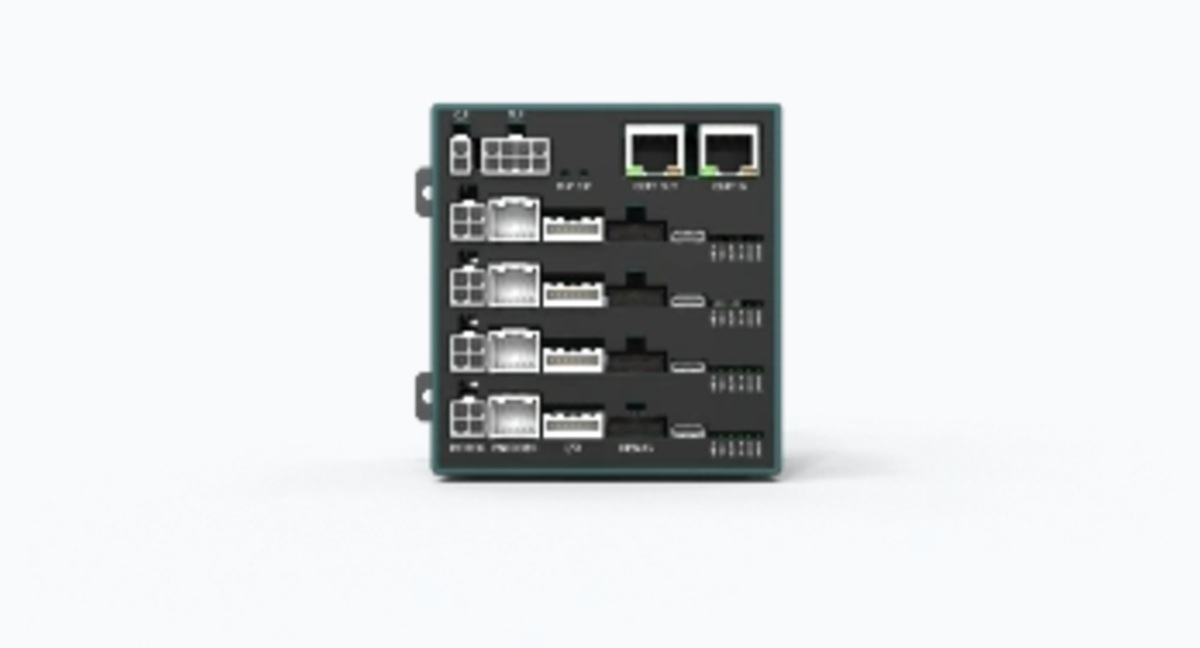

Multi-Channel Application
Up to 4 axes applicationHySTEP 4X is an EtherCAT
slave module enabling independent control of up
to 4 axes, supporting multiple motor types per axis.
8

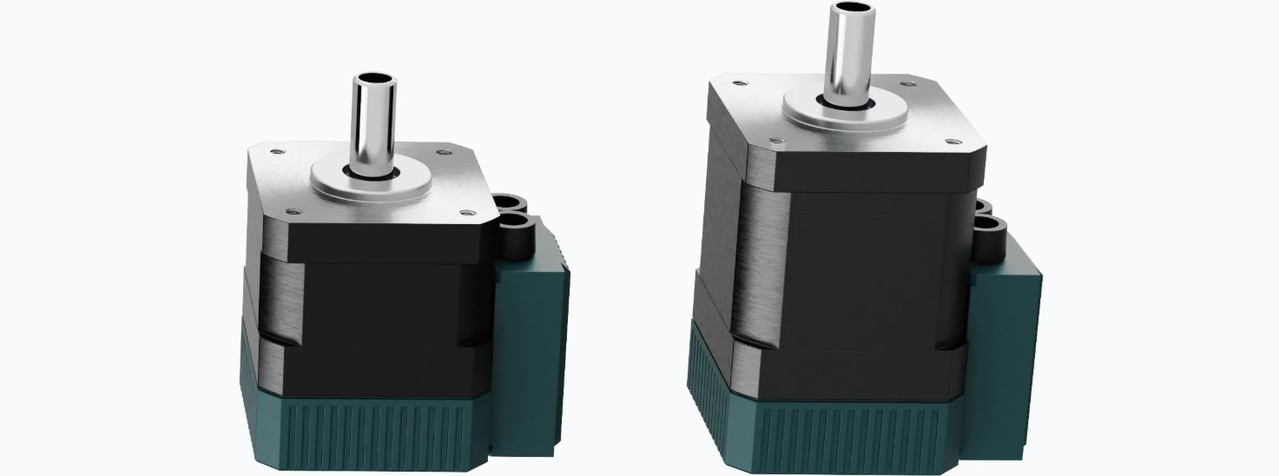

Applying Hollow Shaft Motors
Miniaturization and lightweight designUsing hollow shaft motors
compatible with HySTEP DRIVER can lead to cost savings.
Hollow shaft motors have an empty shaft that allows cables
and pipes to be inserted for use.

Product Line-up

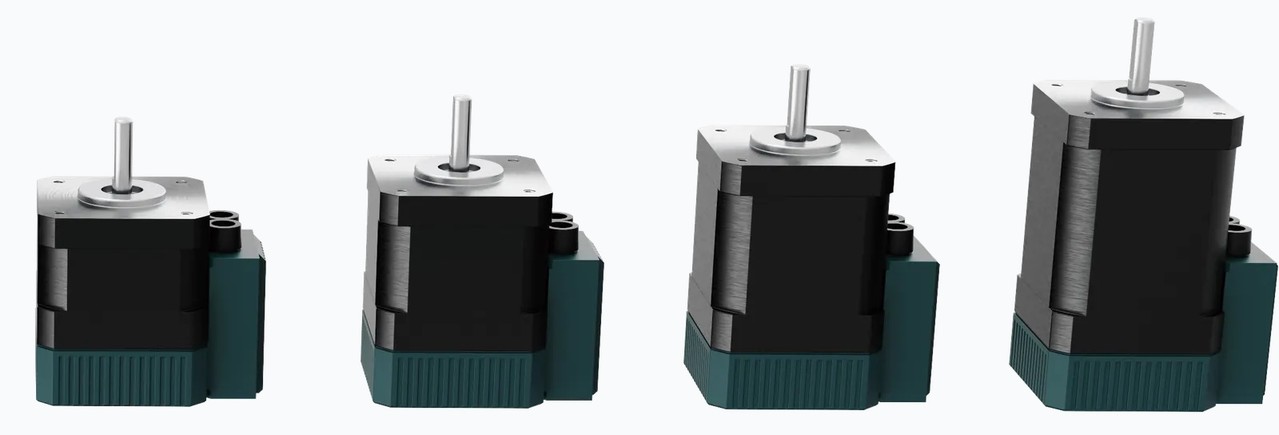

HySTEP MOTOR

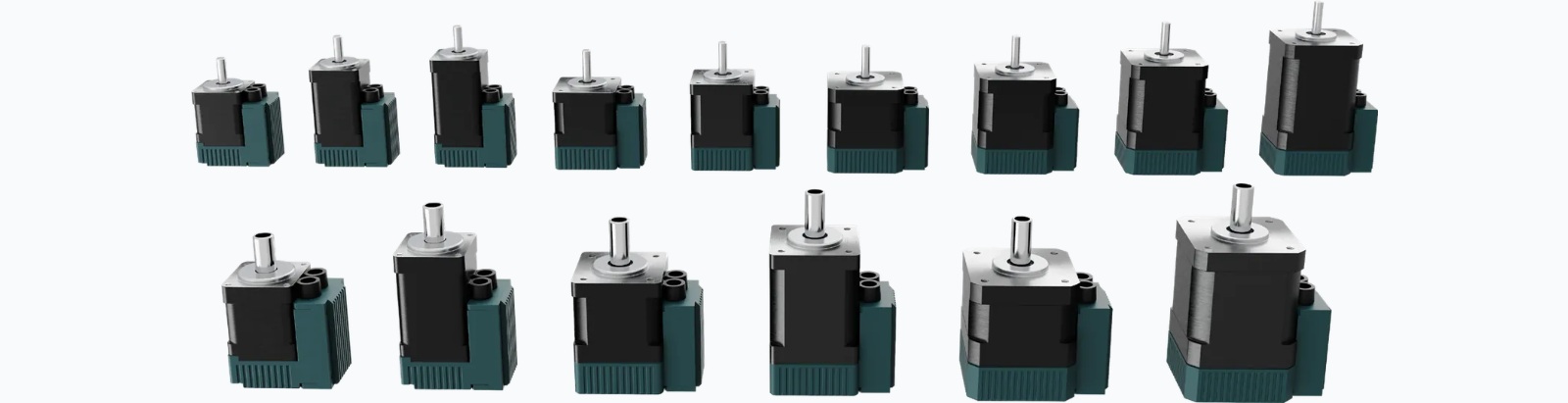

Standard motors: 3 types, 9 varieties / Hollow shaft motors: 3 types, 6 varieties

EtherCAT Driver

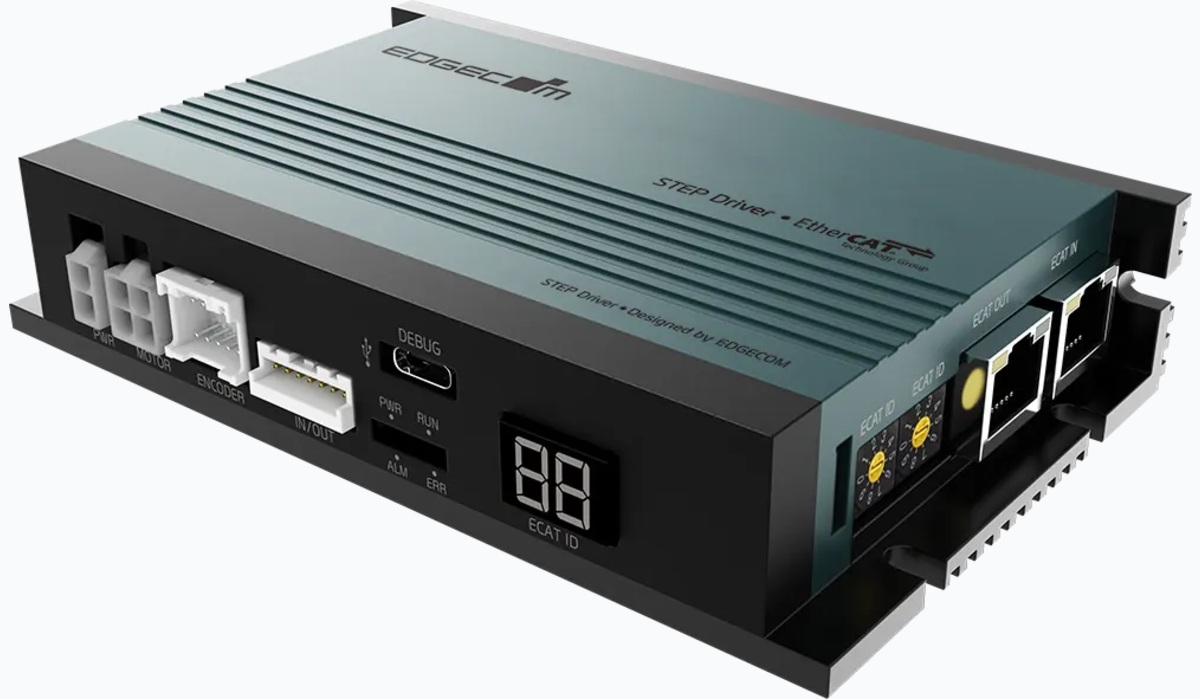

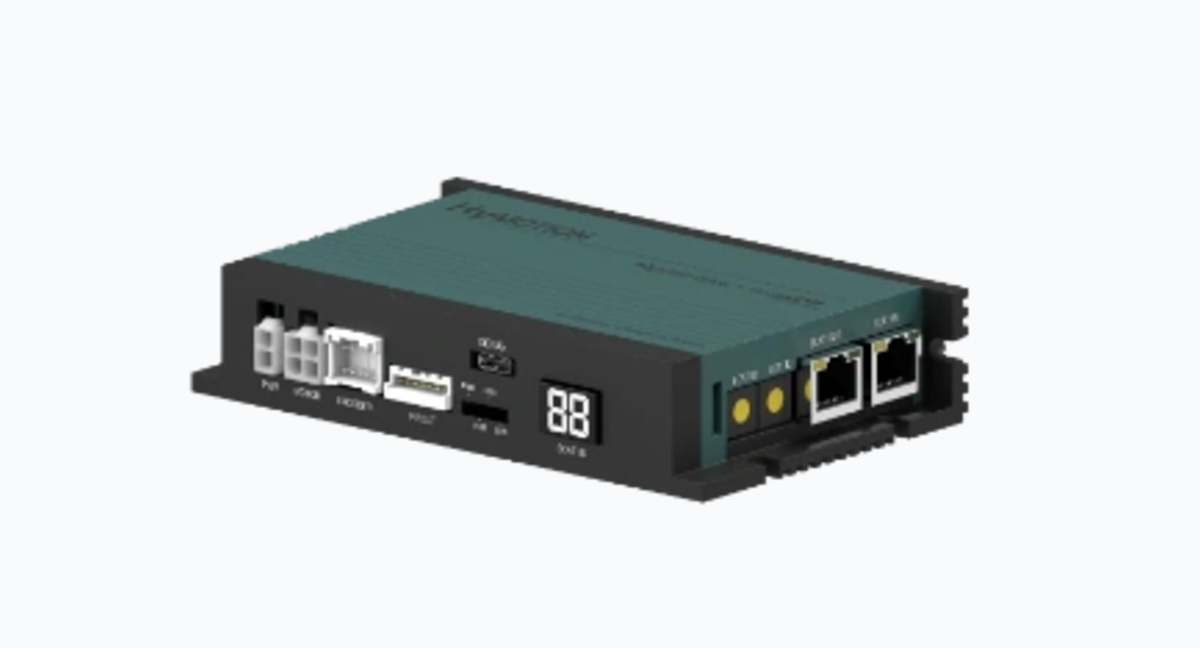

Single axis

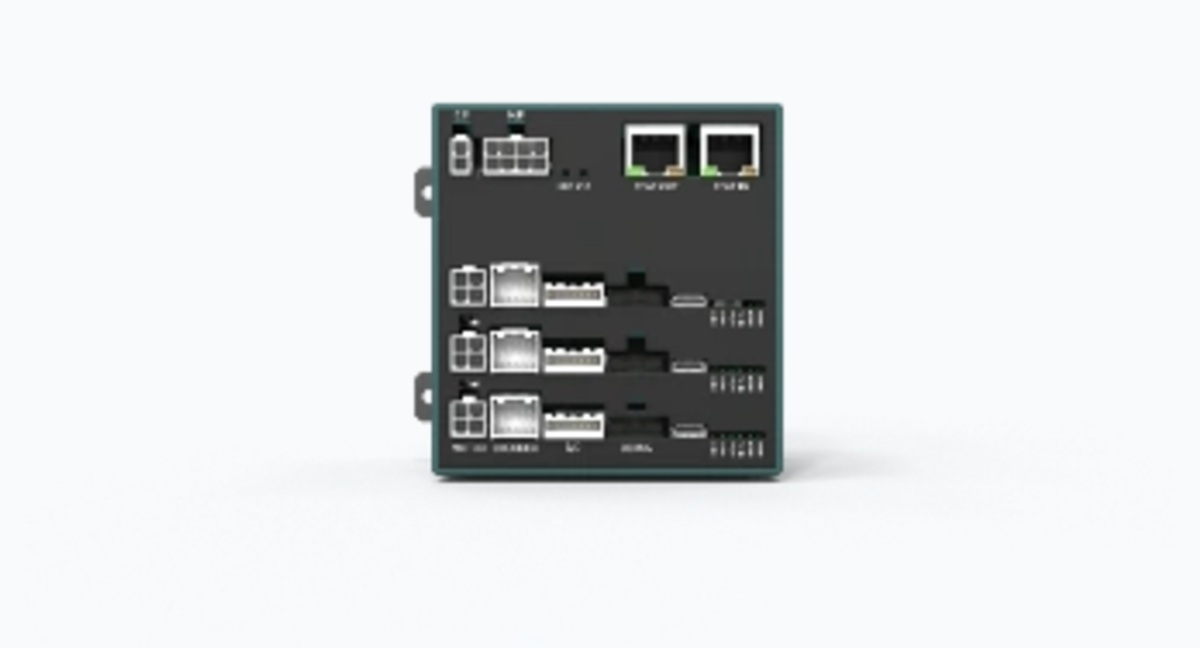

3 axes

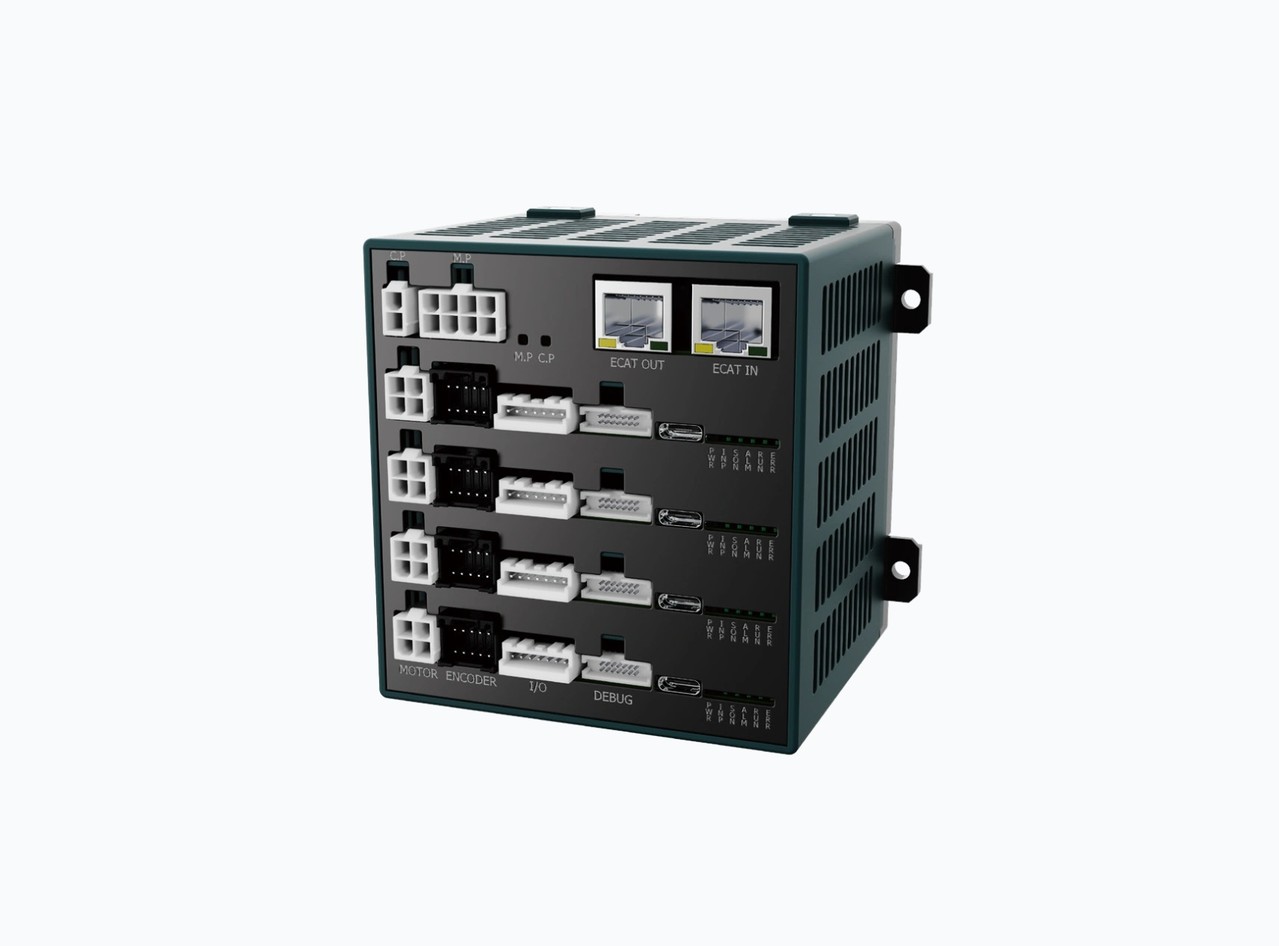

4 axes

Driver Specification


STEP-EC

STEP-EC-4X

Maximum motor rotation speed varies by resolution. When resolution is 10,000 ppr or less,
maximum rotation speed is 3,000 rpm. When resolution exceeds 10,000 ppr, maximum rotation speed is below 3,000 rpm.
Item
STEP-EC Single-Axis Driver
STEP-EC-4X Multi-Axis Driver
Input Voltage24VDC +/-10%24VDC +/-10%
Control MethodClosed-loop control by 32-bit MCUClosed-loop control by 32-bit MCU
Current ConsumptionMax. 500 mA (motor current excluded)Max. 500 mA (motor current excluded)
Operating Temperature0 to 50 degC0 to 50 degC
Storage Temperature-20 to 70 degC-20 to 70 degC
Operating Humidity35 to 85% RH, no condensation35 to 85% RH, no condensation
Storage Humidity10 to 90% RH, no condensation10 to 90% RH, no condensation
Vibration Resistance0.5 g0.5 g
Rotation Speed0 to 3,000 rpm0 to 3,000 rpm
Resolution500 to 20,000 pulses (resolution configurable in object)500 to 20,000 pulses (resolution configurable in object)
Protection FunctionsOvercurrent, overspeed, position tracking, overload, overheat, regenerative voltage, motor connection, encoder connection,
in-position, ROM, and position error excess alarms		Overcurrent, overspeed, position tracking, overload, overheat,
regenerative voltage, motor connection, encoder connection,
in-position, ROM, and position error excess alarms
LED DisplayPower, in-position, STEP ON, and alarm statusPower, in-position, STEP ON, and alarm status
Input Signal Function3 fixed inputs (LIMIT+, LIMIT-, ORIGIN)3 fixed inputs per axis (LIMIT+, LIMIT-, ORIGIN)
Output Signal Function1 signal output (Brake)1 signal output per axis (Brake)

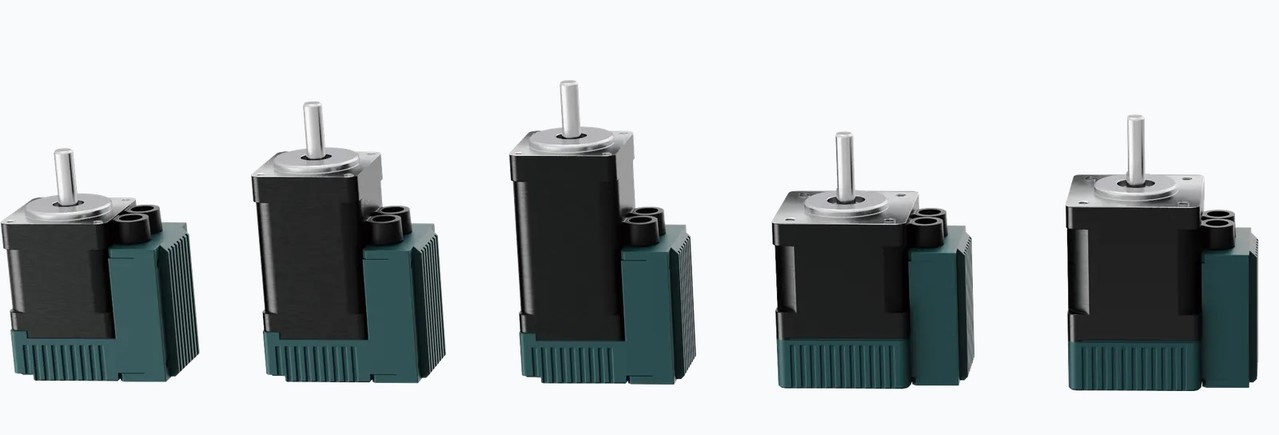

Standard Motor Specification


28 / 35 Type

42 Type

Item
28S
28M
28L
35M
35L
42S
42M
42L
42XL
Motor Type28 Type28 Type28 Type35 Type35 Type42 Type42 Type42 Type42 Type
Drive / PhaseBi-polar 2-phaseBi-polar 2-phaseBi-polar 2-phaseBi-polar 2-phaseBi-polar 2-phaseBi-polar 2-phaseBi-polar 2-phaseBi-polar 2-phaseBi-polar 2-phase
Rated Current (A)1.01.11.51.01.02.02.02.02.0
Holding Torque (mN.m)>=70>=135>=170>=220>=250>=300>=450>=640>=900
Positioning Torque (mN.m)11.811.812.814.814.814.816.816.820.8
Rotor Inertia (g.cm2)7.313.816.52228385762117
Insulation Resistance / Phase>=100 MOhm (DC 500V)>=100 MOhm>=100 MOhm>=100 MOhm>=100 MOhm>=100 MOhm>=100 MOhm>=100 MOhm>=100 MOhm
Resistance / Phase (Ohm)2.33.32.05.46.51.31.51.92.2
Inductance / Phase (mH)1.63.01.86.79.02.02.83.85.0
Insulation ClassClass BClass BClass BClass BClass BClass BClass BClass BClass B
Operating Temperature (degC)0 to 550 to 550 to 550 to 550 to 550 to 550 to 550 to 550 to 55
Length (mm)3245503236.534404860
Weight (kg)0.120.180.200.180.210.220.280.360.48

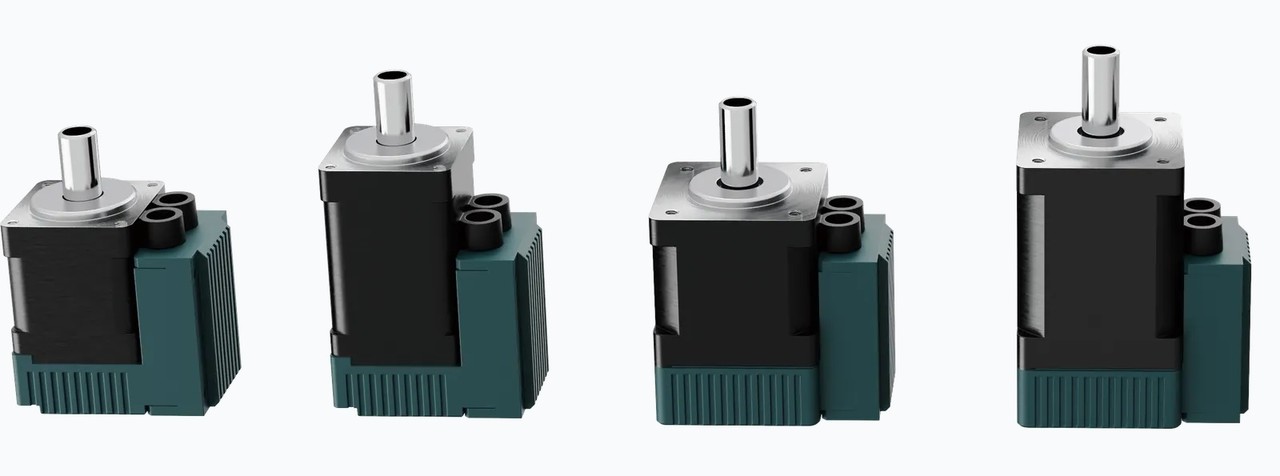

Hollow Shaft Motor Specification


28 / 35 Type

42 Type

Item
28SH
28MH
35MH
35LH
42SH
42LH
Motor Type28 Type28 Type35 Type35 Type42 Type42 Type
Drive / PhaseBi-polar 2-phaseBi-polar 2-phaseBi-polar 2-phaseBi-polar 2-phaseBi-polar 2-phaseBi-polar 2-phase
Rated Current (A)1.01.11.51.22.02.0
Holding Torque (mN.m)>=65>=120>=220>=350>=280>=620
Positioning Torque (mN.m)11.811.814.82014.816.8
Rotor Inertia (g.cm2)7.313.830453862
Insulation Resistance / Phase>=100 MOhm (DC 500V)>=100 MOhm>=100 MOhm>=100 MOhm>=100 MOhm>=100 MOhm
Resistance / Phase (Ohm)2.33.32.43.61.31.9
Inductance / Phase (mH)1.83.53.55.12.24.0
Insulation ClassClass BClass BClass BClass BClass BClass B
Operating Temperature (degC)0 to 550 to 550 to 550 to 550 to 550 to 55
Length (mm)324533.645.63448
Weight (kg)0.120.180.180.240.220.36
Hollow ShaftOuter 8 phi
Inner 6 phi		Outer 8 phi
Inner 6 phi		Outer 8 phi
Inner 6 phi		Outer 8 phi
Inner 6 phi		Outer 8 phi
Inner 6 phi		Outer 8 phi
Inner 6 phi
