CoaxPress Grabber

Next-Level Performance fof High-Speed Vision Systems

  • HVG-CXP12-X4 (G3x8): CoaXPress 1.1, 2.0, 2.1
  • Four (4X) CoaXPress CXP 12 connections (Micro BNC)
  • PCIe 3.0 (Gen 3) x 8 bus
  • Camera Types: Area/Line Scan Camera,
    Monochrome/Color Camera
  • Feature rich set of 20 digital I/O lines
  • JIIA international standard certification

  • Fan-cooled heatsink

  • Extensive camera control functions

  • Feature-rich set of 20 digital I/O lines

Main Features


1
Ultra High Speed Image Acquisition & Data Transfer
With up to 2× the bandwidth of previous generations
and data transfer speeds of up to 12.5 Gbit/s × 8 lanes,
it enables exceptional performance for high speed
imaging applications.
2
Debug Log Viewer Software
Monitor inspection equipment in real time with dedicated debugging software. Featuring Eye Scan, Signal & Performance Graphs, and Internal Log Monitoring,
it enables rapid system diagnostics while supporting seamless integration with vision software.
3
Compact Size
Compact 132 × 103 mm form factor, smaller than comparable competing products enables flexible system configuration even in space constrained installation environments.
4
A Supply Partner with Competitive
Edge in Delivery, Quality, Price
Stable supply and rapid delivery response deliver approximately
40% cost savings compared to competing solutions.
5

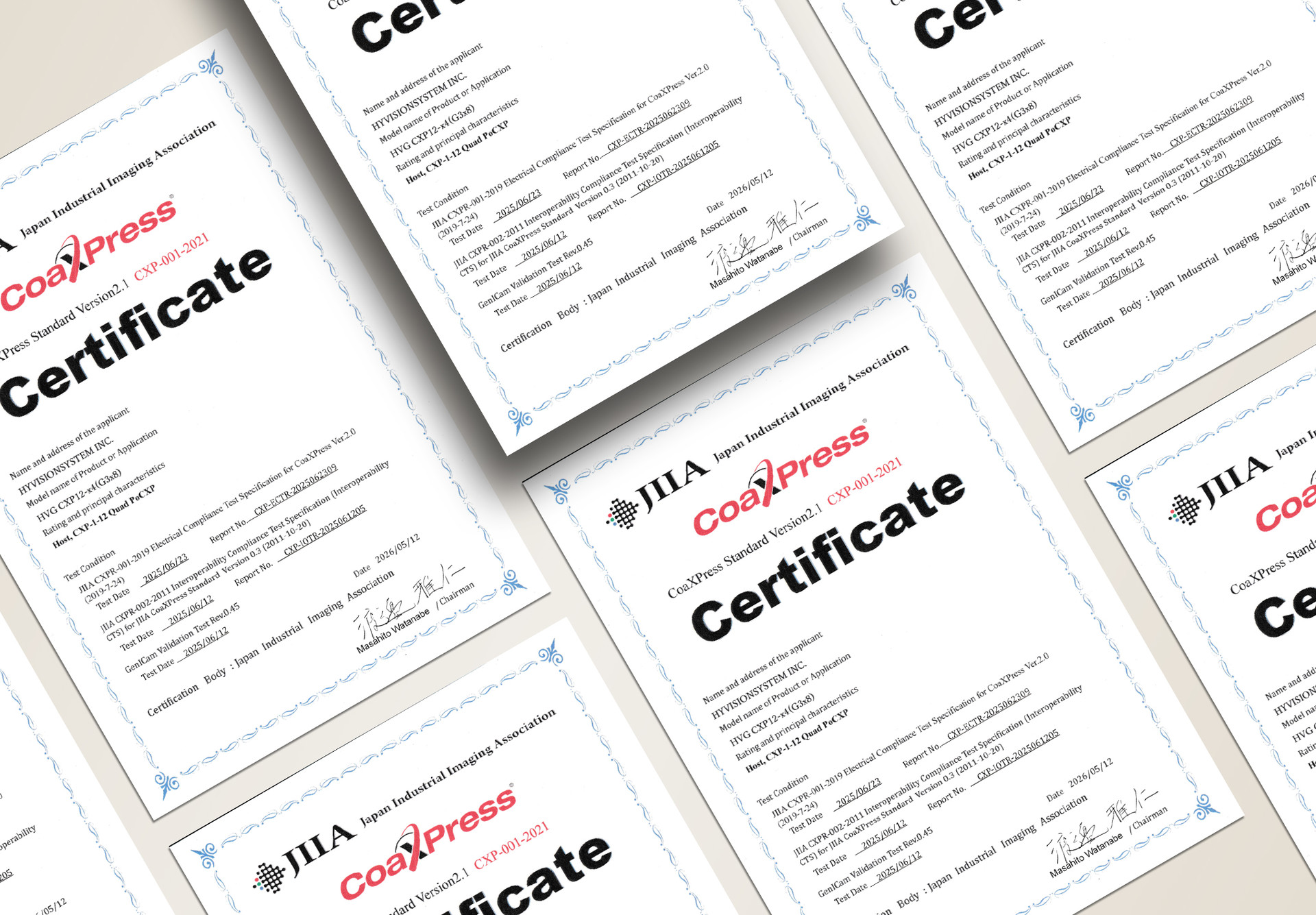

Key Domestic and International Certifications
Certified under JIIA, KC, FCC, CE, and other major standards,
our products meet the requirements of both domestic and
international markets, including Europe and the United States.
Ready to support global customers across a wide range
of projects with fast, flexible deployment.

Specifications


Item

HVG-CXP12-x4(G3x8)

PC Interface

  PCI Express Gen3, 8Lane

Camera Interface

  CoaXPress 2.1

CXP HOST Connector

  4 x Micro-BNC ( impedence 75Ω )

Camera connection

  One 1- or 2- connection camera

  Two 1- or 2- connection camera

  Four connection camera

  - 1Lane camera :  x 1 connection , x2 connections, x3 connections, x4 connections

  - 2Lane camera : x 1 connection , x2 connections

  - 4Lane camera : x 1 connection

Power

  PoCXP Power : 17W of 24V DC regulated per CoaXPress connector

  On-board 12V to 24V DC/DC converter

GPIO

  D-sub Connector (26Pin)

-  High-speed differential Input : 2

-  Isolated Input : 4

-  Isolated Output : 2

-  TTL Input / Output : 2

Board Size

  132 x 103mm

With PCI-E PCB Slot

  132 x 114mm

Certifications


A verified Product that has completed JIIA international standard certification, as well as FCC, CE, KC, and RoHS certifications.
